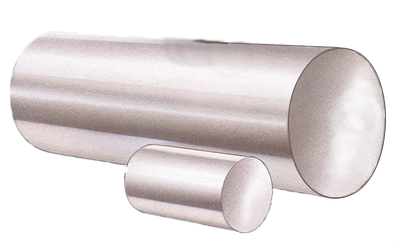

WELLINGTON 60 RC Case Hardened Shafting

WELLINGTON 60 RC
CASE HARDENED SHAFTING

WELLINGTON 60 RC CASE HARDENED SHAFTING SIZES
Nominal Diameter	Tolerance L	Tolerance S	Depth Hardness	Max Length
0.50	.4995/.4985	.4990/.4985	.06	10FT/12FT
0.62	.6245/.6240	.6240/.6235	.06	10FT/12FT
0.75	.7495/.7490	.7490/.7485	.08	180"
1.00	.9995/.9990	.9990/.9985	.08	180"
1.25	1.2495/.1.2490	1.2490/1.2485	.08	180"
1.50	1.4994/1.4989	1.4989/1.4984	0.1	180"
1.75	1.7495/1.7490	1.7490/1.7486	0.1	180"
2.00	1.9994/1.9987	1.9987/1.9980	0.1	180"
2.50	2.4993/2.4985	2.4985/2.4977	0.1	180"
3.00	2.9992/2.9983	2.9983/2.9974	0.1	180"
3.50	3.4990/3.4980	----	0.1	180"
4..00	3.9988/3.9976	3.9976/3.9984	0.1	180"

METRIC 60RC CASE HARDENED SHAFTING
20MM	.7874/.7869		.06	180"
25MM	.9843/.9838		.08	180"
30MM
WELLINGTON PRE-DRILLED SHAFTING AVAILABLE
